TP-Link Gigabit WDM Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-T - Standalone, Rack-mountable TL-FC311A-20

TP-Link Gigabit WDM Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-T - Standalone, Rack-mountable

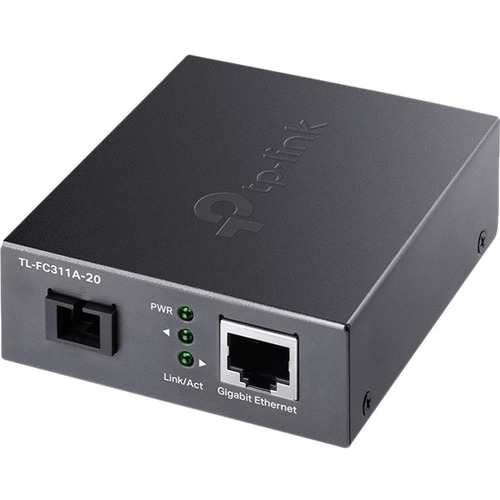

What This Product Does TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.How This Product Works TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link''s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Technical Specifications:
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Media Type Supported: Optical Fiber, Twisted Pair
Fiber Mode Supported: Single-mode
Fiber Optic Wavelength: 1550 nm, 1310 nm
Maximum Distance Supported: 12.43 Mile
Fiber Optic Cable Standard: 9/125 µm
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Power Source: AC Adapter
Form Factor: Standalone, Rack-mountable
Height: 1.1"
Width: 3.7"
Depth: 2.9"
Package Contents:

Gigabit WDM Media Converter, Power Adapter, Installation Guide

Country of Origin: China
