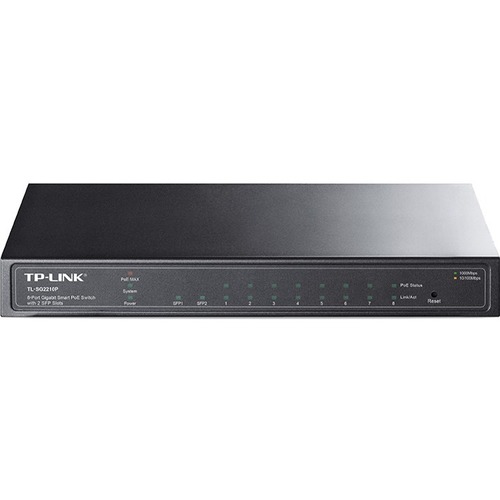

TP-Link JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots - 8 Ports - Manageable - 4 Layer Supported - Modular - 58 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Desktop TL-SG2210P_V3

TP-Link JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots - 8 Ports - Manageable - 4 Layer Supported - Modular - 58 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Desktop

What This Product Does TP-LINK Gigabit Smart Switch TL-SG2210P is equipped with 8-gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support IEEE 802.3af/at with total PoE power budget of 58W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-LINK''s Gigabit Smart Switch TL-SG2210P is specially designed for the small and medium business networks that require efficient network management. TL-SG2210P comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What''s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network. IEEE 802.3af/at-compliant Power over Ethernet The TL-SG2210P supports 8 ports of IEEE 802.3af/at-compliant PoE and has a total power supply of 58W to power any 802.3af/at compliant power device. It''s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones, and other PoE-powered devices while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks. Advanced QoS Features To integrate voice, data and video service on one network, the switch applies rich QoS policies. The administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority, and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter-free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance. Abundant Layer 2 Features For more application of layer 2 switches, TL-SG2210P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics, and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restricts each subscriber on a port level to prevent unauthorized multicast access. Enterprise Level Management Features TL-SG2210P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enable the switch to be polled for valuable status information and send traps on abnormal events.

Technical Specifications:
Total Number of Network Ports: 8
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 1000Base-X
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 2
Layer Supported: 4
Networking Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Manageable: Yes
PoE (RJ-45) Port: Yes
PoE Budget: 58 W
Input Voltage: 120 V AC, 230 V AC
Frequency: 50 Hz, 60 Hz
Power Source: AC Adapter
Power Consumption: 10.50 W
Form Factor: Desktop
Height: 1"
Width: 8.2"
Depth: 4.9"
Package Contents:

JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots, Power Adapter, Installation Guide, Resource CD, Rubber Feet

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
