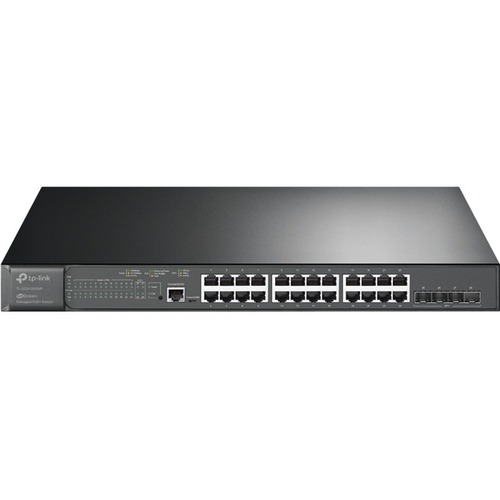

TP-Link JetStream TL-SG3428XMP Ethernet Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - 384 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable, Desktop - Lifetime Limited Warranty - TAA Compliance TL-SG3428XMP

TP-Link JetStream TL-SG3428XMP Ethernet Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - 384 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable, Desktop - Lifetime Limited Warranty - TAA Compliance

10G Uplink Managed Switch with 24 PoE+ Ports for a Complete Omada Network 10G Lightning-Fast Uplink Connection4× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity PoE+ Output24× Gigabit PoE+ Ports with Total 384 W Power Budget Centralized Cloud ManagementSDN Solutions Integration for a Highly Efficient Network Advanced L2+ FeaturesStatic Routing, IGMP Snooping, 802.1Q VLAN and More Enterprise Switch with 10G Uplink 4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built. Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications Features 24× 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. Software-Defined Networking (SDN) with Cloud Access Omada''s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Hassle-Free Cloud or On-Premises Controllers Multi-Site Cloud Management Zero-Touch Provisioning (ZTP) Intelligent Monitoring Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users'' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Enterprise Level Features A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

Technical Specifications:
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details: 24 x Gigabit Ethernet PoE+, 4 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 10GBase-X
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Layer Supported: 3
Networking Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1ab
Manageable: Yes
PoE (RJ-45) Port: Yes
PoE Budget: 384 W
Input Voltage: 120 V AC, 230 V AC
Frequency: 50 Hz, 60 Hz
Power Source: Power Supply
Power Consumption: 34.40 W
Form Factor: Rack-mountable, Desktop
Height: 1.7"
Width: 17.3"
Depth: 13"
Package Contents:

JetStream TL-SG3428XMP Ethernet Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
