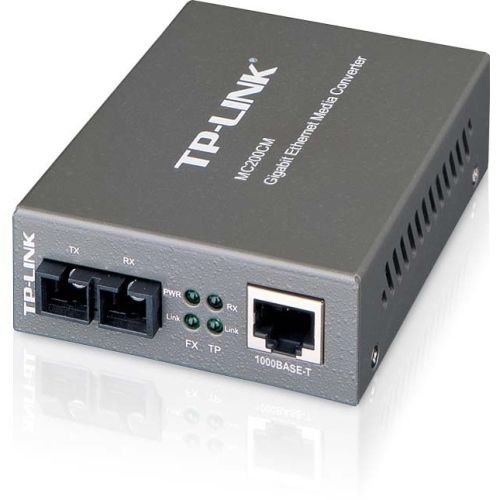

TP-Link MC200CM Gigabit Media Converter, 1000Mbps RJ45 to 1000M multi-mode SC fiber, up to 550m/1800ft, chassis mountable - 1 x Network (RJ-45) - 1000Base-T, 1000Base-FX - External" MC200CM

TP-LINK MC200CM Gigabit Media Converter, 1000Mbps RJ45 to 1000M multi-mode SC fiber, up to 550m/1800ft, chassis mountable - 1 x Network (RJ-45) - 1000Base-T, 1000Base-FX - External"

The MC200CM is a media converter designed to convert 1000BASE-FX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. It works at 850nm on both transmitting and receiving data.

Technical Specifications:
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Wavelength: 850 nm
Maximum Distance Supported: 1804.46 ft
Fiber Optic Cable Standard: 50/125 µm, 62.5/125 µm
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T, 1000Base-FX
Power Source: Power Adapter
Power Consumption: 1.66 W
Form Factor: External
Height: 1.1"
Width: 3.7"
Depth: 2.9"
Package Contents:

MC200CM Gigabit Ethernet Media Converter, Power Adapter, Installation Guide

Additional Information: Wavelength: 850 nm, Provides switch configuration of Force /Auto transfer mode for FX port
Environmentally Friendly: Yes
Environmental Certification: RoHS
