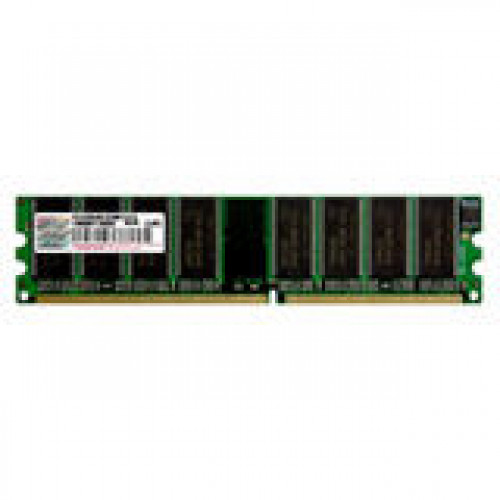

Transcend 512MB DDR SDRAM Memory Module - 512MB - 400MHz DDR400/PC3200 - Non-ECC - DDR SDRAM - 184-pin DIMM TS64MLD64V4F3

Transcend 512MB DDR SDRAM Memory Module - 512MB - 400MHz DDR400/PC3200 - Non-ECC - DDR SDRAM - 184-pin DIMM

The TS64MLD64V4F3 is a 64M x 64bits Double Data Rate SDRAM high-density for DDR400.The TS64MLD64V4F3 consists of 16pcs CMOS 32Mx8 bits Double Data Rate SDRAMs in 66 pin TSOP-II 400mil packages and a 2048 bits serial EEPROM on a 184-pin printed circuit board. The TS64MLD64V4F3 is a Dual In-Line Memory Module and is intended for mounting into 184-pin edge connector sockets.

Technical Specifications:
Memory Size: 512 MB
Memory Technology: DDR SDRAM
Memory Speed: 400 MHz
Memory Standard: DDR400/PC3200
Error Checking: Non-ECC
Signal Processing: Unbuffered
Device Supported: Desktop PC
Number of Pins: 184-pin
Form Factor: DIMM
Thickness: 50 mil
Width: 1.2"
Length: 5.3"
