TRANSITION NETWORKS 1000BASE-LX 1310nm(10 Km) SFP Module - 1 x 1000Base-LX - TAA Compliance TN-SFP-LX1

Transition Networks 1000BASE-LX 1310nm(10 Km) SFP Module - 1 x 1000Base-LX - TAA Compliance

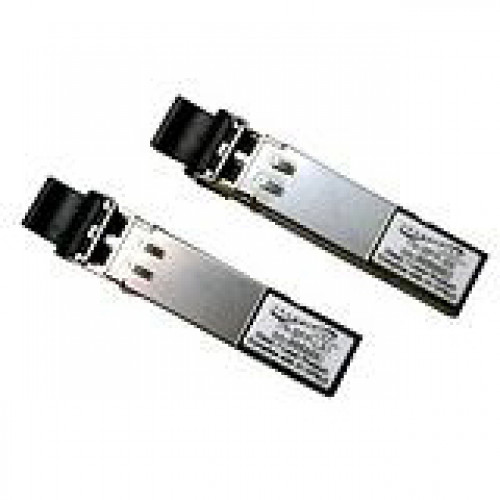

The TN-SFP-LX1 Small Form Factor Pluggables (SFP) transceiver is designed for bi-directional serial optical data communications such as Gigabit Ethernet or Fiber Channel and speeds up to 1.25Gbps.The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The module also offer comprehensive digital diagnostic capability (DMI).

Technical Specifications:
Application/Usage: Data Networking
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC 1000Base-LX
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Maximum Distance Supported: 32808.40 ft
Maximum Data Transfer Rate: 1.25
Form Factor: Hot-pluggable
Height: 0.3"
Width: 0.5"
Depth: 2.2"
Additional Information: Fiber Channel Switch Infrastructure, Optical Wavelength: 1310nm, Metro Edge Switching, Digital Diagnostic Function, Min TX PWR: -9.5 dBm, Max TX PWR: -3 dBm, RX Sensitivity: -21 dBm, Max In PWR: -3 dBm, Link Budget: 11.50 dB
Compatibility: The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Country of Origin: Taiwan
