TRANSITION NETWORKS 1000Base-T to 1000Base-SX/LX Stand-Alone Media Converters - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 10/100/1000Base-T, 1000Base-LX - Internal - RoHS, TAA, WEEE Compliance C3110-1029-A1

Transition Networks 1000Base-T to 1000Base-SX/LX Stand-Alone Media Converters - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 10/100/1000Base-T, 1000Base-LX - Internal - RoHS, TAA, WEEE Compliance

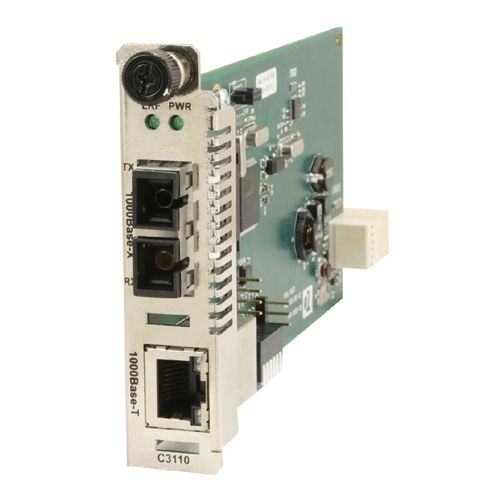

The ION C3110 device provides an interface between 1000Base-T ports and 1000Base-SX/LX ports allowing users to integrate fiber optic cabling into 1000Base-T copper environments.

Technical Specifications:
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Media Type Supported: Twisted Pair, Optical Fiber
Fiber Mode Supported: Single-mode
Maximum Distance Supported: 12.43 Mile
Network Technology: 10/100/1000Base-T, 1000Base-LX
Form Factor: Internal
Height: 3.4"
Width: 0.9"
Depth: 6.6"
Compatibility:

Transition ION Platform Chassis

Certifications & Standards:

IEEE Standards:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Regulatory Compliance:

CISPR/EN55022 Class A, FCC Class A, CE Mark, EN55024
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
