TRANSITION NETWORKS 10GBase-T Copper to Fiber Media Converter - 1 x Network (RJ-45) - 10GBase-T, 10GBase-X - 1 x Expansion Slots - 1 x SFP+ Slots - Wall Mountable, Rail-mountable, Rack-mountable - RoHS, TAA, WEEE Compliance S4120-1048-NA

Transition Networks 10GBase-T Copper to Fiber Media Converter - 1 x Network (RJ-45) - 10GBase-T, 10GBase-X - 1 x Expansion Slots - 1 x SFP+ Slots - Wall Mountable, Rail-mountable, Rack-mountable - RoHS, TAA, WEEE Compliance

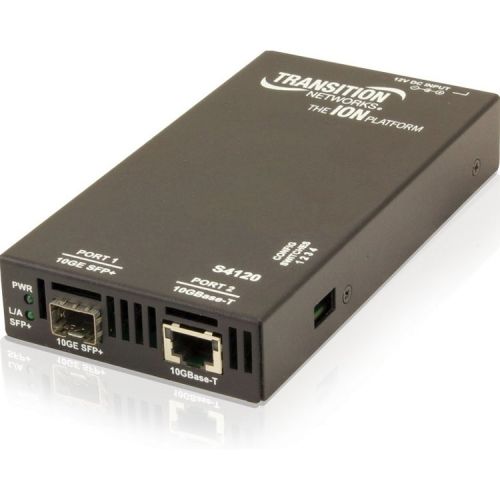

The x4120-1048 is a 10 Gigabit Ethernet copper to fiber media converter. It offers conversion technology by providing one 10GBase-T RJ-45 port and one pluggable 10GBase-X fiber SFP+ port. The open SFP+ port supports a wide variety of Transition Networks 10GE SFP+ fiber modules, as well as third party MSA compatible SFP+ modules. The x4120 provides several 10G Ethernet enterprise and data center connectivity solutions. Since most 10G Ethernet switches support a combination of copper RJ-45 and open SFP+ ports, the x4120 allows users to convert either of these ports to the media type of their preference to match their network requirements, including direct attached copper SFP+ cables.

Technical Specifications:
Total Number of Ports: 1
Network (RJ-45): Yes
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Management Port: No
Number of Network (RJ-45) Ports: 1
Media Type Supported: Twisted Pair
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP+
Number of SFP+ Slots: 1
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-T, 10GBase-X
Input Voltage: 12 V DC
Form Factor: Wall Mountable, Rail-mountable, Rack-mountable
Height: 1"
Width: 3.3"
Depth: 6.5"
Certifications & Standards:

FCC Class A, EN55022 Class A, EN55024, CE Mark, IEEE802.3, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3az

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United States
