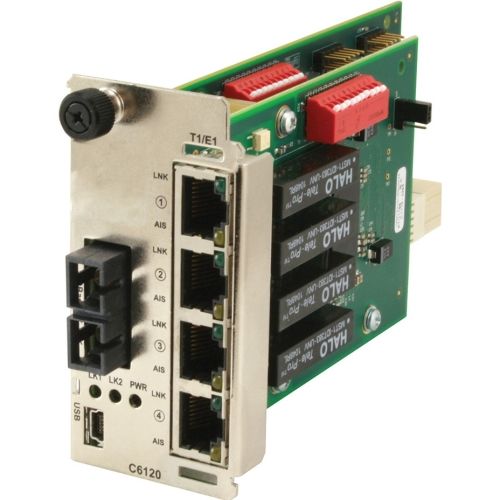

TRANSITION NETWORKS C6120 Interface Module - For Optical Network, Data Networking 4 RJ-48 T1/E1/J1 Network, 1 RJ-45 10/100Base-TX Network - Optical Fiber, Twisted Pair Multi-modeT1/E1/J1, 10/100Base-TX1 x Expansion Slots - SFP - TAA Compliance C6120-1040

Transition Networks C6120 Interface Module - For Optical Network, Data Networking 4 RJ-48 T1/E1/J1 Network, 1 RJ-45 10/100Base-TX Network - Optical Fiber, Twisted Pair Multi-modeT1/E1/J1, 10/100Base-TX1 x Expansion Slots - SFP - TAA Compliance

The ION C6120 is a managed T1/E1/J1 mux media converter module and provides a solution for those users that need to extend multiple T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. The C6120 includes (4) RJ-48 ports, (1) 10/100 Ethernet port, and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The C6120 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location.

Technical Specifications:
Application/Usage: Optical Network, Data Networking
Total Number of Ports: 5
Connector Type: RJ-45, RJ-48
Interfaces/Ports Details: 4 x RJ-48 T1/E1/J1 Network, 1 x RJ-45 10/100Base-TX Network
Media Type Supported: Optical Fiber, Twisted Pair
Fiber Mode Supported: Multi-mode
Network Technology: T1/E1/J1, 10/100Base-TX
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP
Height: 3.4"
Width: 1.7"
Depth: 6.5"
Weight (Approximate): 1 lb
Compatibility: ION Chassis
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: United States
