TRANSITION NETWORKS M.2 Fast Ethernet Fiber Network Interface Card for Dell OptiPlex 7060/5060/3060 - M.2 - 1 Port(s) - Optical Fiber - TAA Compliance NM2-FXS-2230-SFP-201

Transition Networks M.2 Fast Ethernet Fiber Network Interface Card for Dell OptiPlex 7060/5060/3060 - M.2 - 1 Port(s) - Optical Fiber - TAA Compliance

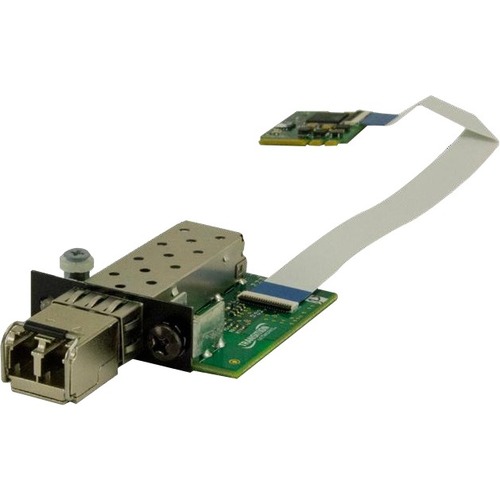

Transition Networks M.2 Fast Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex™ 7060, 5060, and 3060 Micro PCs. The NM2-FXS-2230-SFP-201 consists of a M.2 NIC that installs into the OptiPlex Micro PC''s M.2 "E key" interface, a fiber optic adapter that installs into the OptiPlex Micro PC''s Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is an open SFP with a 100Base-FX to SGMII SFP Module (included).

Technical Specifications:
Host Interface: M.2
Total Number of Ports: 1
Expansion Slot Type: SFP
Media Type Supported: Optical Fiber
Network Technology: 100Base-FX
Form Factor: Plug-in Card
Weight (Approximate): 1.60 oz
Package Contents:

M.2 Fast Ethernet Fiber Network Interface Card for Dell 7060/5060/3060, 100Base-FX to SGMII SFP Module

Device Supported: PC
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
