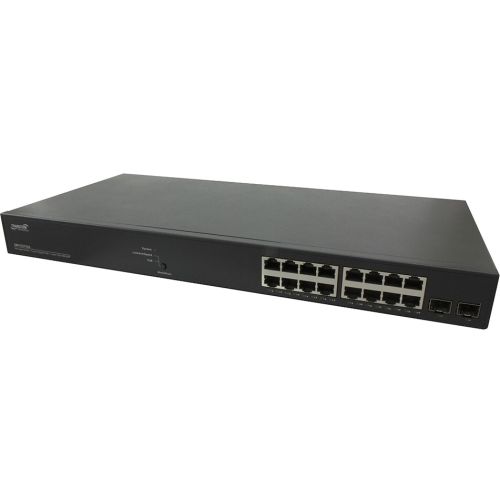

TRANSITION NETWORKS Smart Managed PoE+ Switch - 16 Ports - Manageable - 4 Layer Supported - Modular - Twisted Pair, Optical Fiber - Rack-mountable - Lifetime Limited Warranty - TAA Compliance SM16TAT2SA-NA

Transition Networks Smart Managed PoE+ Switch - 16 Ports - Manageable - 4 Layer Supported - Modular - Twisted Pair, Optical Fiber - Rack-mountable - Lifetime Limited Warranty - TAA Compliance

This switch is a next generation smart managed switch with 36Gbps switching capacity. It provides (16) 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and (2) additional 100/1000 dual speed SFP slots. The embedded Device Management System (DMS) provides the benefits of ease of use in the IP surveillance, wireless Access Point and other applications. The DMS capability built into the switches is new from Transition Networks and provides time-saving features enabling security integrators or network administrators to establish and document a baseline deployment, automatically discover and remotely configure attached IP-powered devices (PDs).

Technical Specifications:
Total Number of Network Ports: 16
Uplink Port: No
Modular: Yes
Stack Port: No
Network (RJ-45): Yes
Port/Expansion Slot Details: 16 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-X, 10/100/1000Base-T
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2
Number of SFP+ Slots: 2
Layer Supported: 4
Manageable: Yes
Power Source: Power Supply
Redundant Power Supply Supported: No
Power Consumption: 296 W
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.4"
Depth: 8.3"
Weight (Approximate): 6.60 lb
Package Contents:

Smart Managed PoE+ Switch, 19" Rack Mount Brackets, Power Cord (North America)

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
