Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep - For UPS - 12U Rack Height x 19" Rack Width x 24.50" Rack Depth - Wall Mountable - Black - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capaci

Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep - For UPS - 12U Rack Height x 19" Rack Width x 24.50" Rack Depth - Wall Mountable - Black - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capacity - TAA Compliance

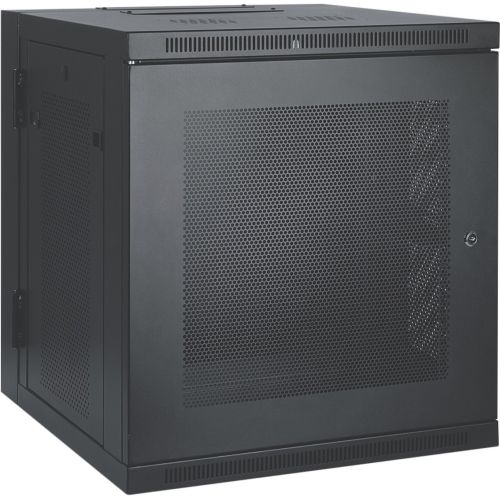

The SRW12USDP SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.The SRW12USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite''s optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.

Technical Specifications:
Application/Usage: UPS
Form Factor: Wall Mountable
Product Color: Black
Maximum Weight Capacity: 200 lb
Static/Stationary Weight Capacity: 200 lb
Height: 25.1"
Width: 23.6"
Depth: 25.5"
Weight (Approximate): 63.50 lb
Rack Height: 12U
Rack Width: 19"
Rack Depth: 24.50"
Package Contents:

SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back, 20 x M6 Screws, 20 x M6 Cage Nuts, 20 x M6 Washers, 20 x12-24 Screws, 2 x Keys, Owner's Manual

Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
