Tripp Lite 50/125 OM4 Pre-assembled 40GB-10GB Patch Panel 42 MTP QSFP-168LC - 168 x Duplex - 2U High - Black - 19" Wide - Rack-mountable N48K-42M8L168-B

Tripp Lite 50/125 OM4 Pre-assembled 40GB-10GB Patch Panel 42 MTP QSFP-168LC - 168 x Duplex - 2U High - Black - 19" Wide - Rack-mountable

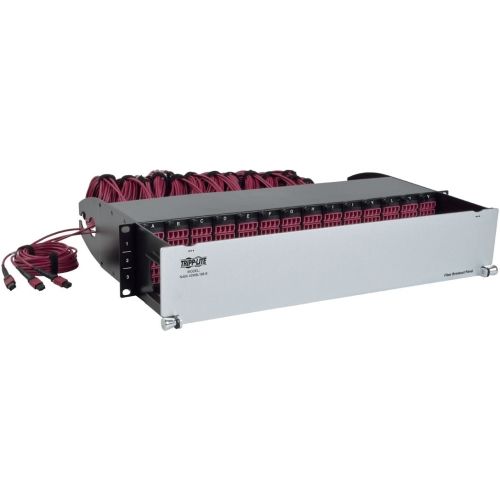

The N48K-42M8L168-B 50/125 Breakout Fiber Patch Panel not only integrates equipment with 10G and 40G speeds, but also provides a simple, flexible path to 100G and 400G speeds in the future. The 2U chassis features 14 breakout cassettes. Each cassette contains 12 LC duplex ports and three built-in two-meter MTP multimode cables for a total of 42 QSFP fiber switch ports breaking out to 168 LC ports. Base8 wiring with built-in MTP trunks maximizes rack space and link performance, while enabling simple cable deployment and optimized harness mapping. The N48K-42M8L168-B uses all 168 LC ports, meaning no dead ports as in Base12 wiring, with streamlined 1-to-1 port mapping. Eliminating the need for 12-fiber conversion modules results in a reduction of up to 50 percent in link attenuation.Hardwired cassettes offer a 30-percent improvement in insertion loss with no separate MTP connection in the rear, resulting in longer duplex link distances. Color-coded magenta OM4 cables are easily distinguished from traditional aqua OM3 multimode fiber.The front panel folds down to protect the LC patch cords, as well as provide wire mapping by matching each cassette''s labeled MTP cables to the LC clusters. Writing space on the inside panel lets you custom-label each port. Each panel is serialized and insertion loss data is available upon request via the unit''s serial number.Features Integrates Equipment with 10G and 40G Speeds to Meet Current Connectivity Needs Also future-proofs your network for eventual 100G and 400G speeds Recommended for QSFP fiber-based Ethernet switches OM4 fiber for highest throughput 14 Breakout Cassettes 12 LC duplex ports and 3 built-in 2-meter MTP multimode cables per cassette Total of 42 QSFP fiber switch ports and 168 LC ports 100% fiber utilization Streamlined 1:1 port mapping Up to 50% reduction in link attenuation Color-coded magenta cables easily distinguishable in crowded switch Base8 Wiring No unused LC ports as in Base12 wiring Simple patch cable deployment Optimized harness mapping Hardwired cassette modules offer 30% improvement in insertion loss Fold-Down Front Panel LC patch cables protected Provides wire mapping by matching each cassette''s labeled MTP cables to LC clusters Writing space on inside panel for custom-labeling of ports Insertion loss data available via unit''s serial number Mounts in 2U of EIA-Standard 19 in. Rack Maximizes rack space and link performance

Technical Specifications:
Number of LC Ports: 168
LC Port Type: Duplex
Product Color: Black
Form Factor: Rack-mountable
Compatible Rack Unit: 2U
Compatible Rack Width: 19"
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
