Tripp Lite 8-Port Rack Console KVM Switch w/19" LCD & 8 PS2/USB Cables 1U - 8 Computer(s) - 19" - 8 x HD-18 Keyboard/Mouse/Video - 1U Height - RoHS, TAA, WEEE Compliance B020-U08-19-K

Tripp Lite 8-Port Rack Console KVM Switch w/19" LCD & 8 PS2/USB Cables 1U - 8 Computer(s) - 19" - 8 x HD-18 Keyboard/Mouse/Video - 1U Height - RoHS, TAA, WEEE Compliance

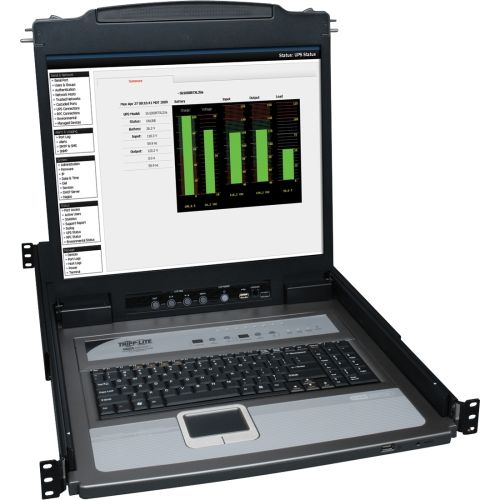

Tripp Lite''s B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it''s the optimal solution for controlling up to 8 computers/servers.The B020-U08-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display(OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external m ouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

Technical Specifications:
KVM Switch: Yes
Number of Computers Supported: 8
Daisy Chain: Yes
Device Type: LCD Rack Console
Screen Size: 19"
Display Screen Type: LCD
Screen Mode: SXGA
Screen Resolution: 1280 x 1024
Pointing Device Type: TouchPad
USB: Yes
Number of USB Ports: 2
Height: 1.8"
Width: 17"
Depth: 27"
Weight (Approximate): 30.60 lb
Package Contents: NetDirector Console RM LCD KVM Switch, 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits, RJ11 to DB9 Firmware Upgrade Cable, C13 to 5-15P Power Cord, CD with Owner's Manual, Quick Start Guide, Grounding Wire, Rackmount Hardware
Certifications & Standards: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
TAA Compliant: Yes
