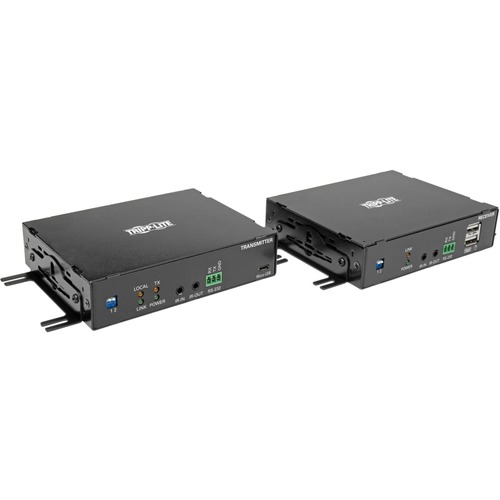

Tripp Lite B127F-1A1-SM-DD Video Extender Transmitter/Receiver - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 3 x USB - 1 x HDMI - DisplayPort - 120 V AC, 230 V AC Input Voltage - Rac

Tripp Lite B127F-1A1-SM-DD Video Extender Transmitter/Receiver - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 3 x USB - 1 x HDMI - DisplayPort - 120 V AC, 230 V AC Input Voltage - Rack-mountable - TAA Compliant - TAA Compliance

Transmitter/receiver kit extends a 4K DisplayPort signal via singlemode fiber cable to a DisplayPort monitor up to 6.2 miles away. FeaturesDisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show Booths This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling.Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color The B127F-1A1-SM-DD supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It''s compatible with HDCP 2.2, DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.DIP Switches Extend Your Choice of USB, IR or RS-232 Signals The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as Tripp Lite''s P580-Series). Then, connect the two units using a duplex singlemode LC fiber cable (Tripp Lite N520-Series). Connect an optional display to the transmitter''s local HDMI output to monitor the image connected to the receiver up to 6.2 miles away.TAA-Compliant for GSA Schedule Purchases The B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Technical Specifications:
Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 32808.40 ft
Graphic Mode: 4K
Maximum Video Resolution: 3840 x 2160
USB: Yes
HDMI: Yes
DisplayPort: Yes
Number of HDMI Ports: 1
Number of USB Ports: 3
Input Voltage: 120 V AC, 240 V AC
Input Voltage Range: 100V AC to 240V AC
Product Color: Black
Form Factor: Rack-mountable
Transmitter Height: 1.06"
Transmitter Width: 4.53"
Transmitter Depth: 2.46"
Receiver Height: 1.06"
Receiver Width: 4.53"
Receiver Depth: 2.46"
Transmitter Weight (Approximate): 1.10 lb
Receiver Weight (Approximate): 1.10 lb
Package Contents:

1 x Transmitter Unit , 1 x Receiver Unit, 2 x External power supplies with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A) , 8 x International plug adapters (North America, Europe, Australia, United Kingdom) , 2 x Sets of Mounting Hardware, Owner's Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH, WEEE
Country of Origin: Taiwan
TAA Compliant: Yes
