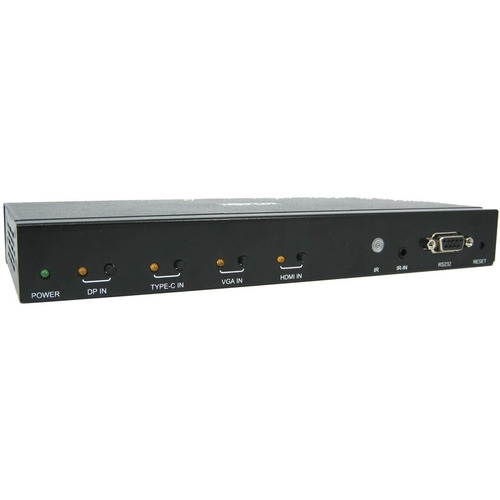

Tripp Lite B320-4X1-MH 4-Port Multi-Format Presentation Switch - 4096 x 2160 - 4K - 3 x 1 - 1 x HDMI Out - 1 x DisplayPort In - TAA Compliant - TAA Compliance B320-4X1-MH

Tripp Lite B320-4X1-MH 4-Port Multi-Format Presentation Switch - 4096 x 2160 - 4K - 3 x 1 - 1 x HDMI Out - 1 x DisplayPort In - TAA Compliant - TAA Compliance

4-Port Multi-Format Presentation Switch Connects 4 Video Sources to One HDMI Display This presentation switch connects four separate source devices to your 4K television, projector or monitor''s HDMI input and switches between them. The B320-4X1-MH features HDMI, DisplayPort, USB-C and VGA + Audio inputs for connecting Windows laptops, cable boxes, media servers, Blu-ray players, video game consoles and other video sources. Switch from one source to another using the manual push buttons, RS-232 commands or the included remote control. Suitable for a Wide Range of Audio/Video Applications for Work or Play This switch is recommended anywhere a variety of video signals is transmitted to a hi-def display. It is suitable for home theaters, video and multimedia presentations, security applications or digital signage in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows. Transmits Crystal-Clear True 4K Video with HDR, 4:4:4 Color and 7.1-Channel Audio The HDMI, DisplayPort and USB-C ports support true 4K resolutions up to 4096 x 2160 at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Full, rich, uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital surround sound ensure your ears receive the same treat as your eyes. The VGA port supports HD video up to 1920 x 1080 (1080p) at 60 Hz. PD 3.0 Charging Port Charges the USB-C Source to Avoid Battery Drain and Signal Loss The USB-C Power Delivery port provides up to 20V 5A (100W), of which 90W is used to charge and power the connected USB-C device, such as a MacBook Pro or Windows laptop. Connect the device''s power supply or power adapter between the USB-C PD 3.0 port and an available AC outlet to prevent the source from running out of power prematurely. Plug-and-Play Operation for Quick Setup and Immediate Use The switch works right out of the box with no software required. Mounting hardware is included for installing the switch on a wall, pole or 19-inch rack. Connect your devices to the switch''s ports with user-supplied cables (sold separately), and plug the switch''s external power supply into an AC power source. TAA-Compliant for GSA Schedule Purchases The B320-4X1-MH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Typical Applications Switch between your laptop, media server, cable box, Blu-ray player, video game console, Roku or other audio/video sources in your home theater Connect multiple desktop computers and laptops to one monitor to save desk space Create multiple digital signage messages to appear at various times on a 4K HDMI display System Requirements Source devices with HDMI, DisplayPort, USB-C and/or VGA output Display device with HDMI input

Technical Specifications:
Connectivity Technology: Cable
Number of Input Devices Supported: 3
Device Supported: Display, Home Theater System, Digital Signage, Computer, Media Center, Blu-ray Disc Player, Gaming Console, Set-top Box
Number of Displays Supported: 1
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
HDMI In: Yes
HDMI Out: Yes
VGA In: Yes
DisplayPort: Yes
Number of USB Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Number of VGA Inputs: 1
Number of DisplayPort Inputs: 1
Height: 9.3"
Width: 3.9"
Depth: 1.2"
Weight (Approximate): 1.43 lb
Package Contents:

B320-4X1-MH 4-Port Multi-Format Presentation Switch , IR Remote control, IR Receiver cable, 5 ft., External power supply with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A), 4x International plug adapters (North America, U.K., Europe, Australia), Mounting Hardware, Owner's Manual

Environmentally Friendly: Yes
Environmental Certification: REACH, RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
