Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a 4x2 Extender Transmitter, Serial and IR Control 4K x 2K 150m 500ft - 4 Input Device - 500 ft Range - 2 x Network (RJ-45) - 4 x HDMI In - Serial Port - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Wall Mount

Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a 4x2 Extender Transmitter, Serial and IR Control 4K x 2K 150m 500ft - 4 Input Device - 500 ft Range - 2 x Network (RJ-45) - 4 x HDMI In - Serial Port - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Wall Mountable, Rack-mountable, Pole-mountable" - TAA Compliance

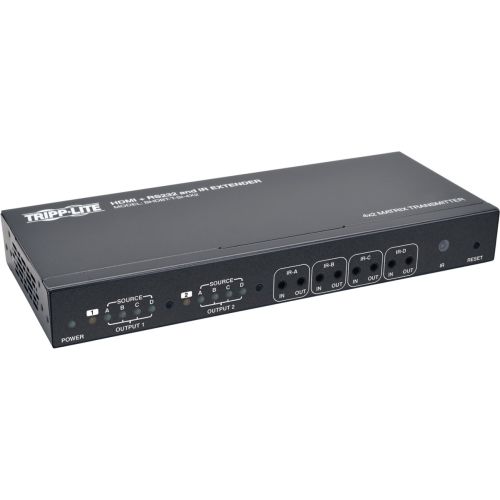

The BHDBT-T-SI-4X2 HDBaseT HDMI over Cat5e/6/6a 4x2 Extender Matrix Transmitter works in tandem with the Tripp Lite BHDBT-Series receiver in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals. It features four HDMI input ports and two RJ45 output ports, letting you route any source to either display or the same source to both displays.Using a single Cat5e/6/6a cable, the BHDBT-T-SI-4X2 can extend an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) signal up to 328 feet(100 m) or an HD 1920 x 1080(1080p) signal up to 500 feet(150 m). To further extend and expand your installation, you can insert up to five BHDBT-Series Extender Transceivers between the transmitter and receiver for a total range up to 3,000 feet with a monitor connected to each transceiver.** The sources connect to locking HDMI ports that prevent the cable from coming loose or undone, ensuring an intact signal.The BHDBT-T-SI-4X2 supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the unit to a wall, rack or pole. Sets up quickly with no software to download or install.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 4
Maximum Operating Distance: 500 ft
Graphics Modes: 4K
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
HDMI In: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 4
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Product Color: Black
Transmitter Height: 1.20"
Transmitter Width: 9.30"
Transmitter Depth: 3.90"
Form Factor: Wall Mountable, Rack-mountable, Pole-mountable
Transmitter Weight (Approximate): 3.50 lb
Package Contents:

BHDBT-T-SI-4X2 HDBaseT HDMI over Cat5e/6/6a 4x2 Extender Matrix Transmitter, Remote Control, IR extension Cable, 3.5 mm Male to DB9 Female Adapter Cable, External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A), Mounting Hardware, Owner's Manual

Environmentally Friendly: Yes
Environmental Certification: REACH, RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
