Tripp Lite HDMI over Cat5 Cat6 Video Extender Transmitter & Receiver TAA - 1 Input Device - 2 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 3 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Rack-mountable, Wall Mountable, Pole

Tripp Lite HDMI over Cat5 Cat6 Video Extender Transmitter & Receiver TAA - 1 Input Device - 2 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 3 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant - RoHS, TAA Compliance

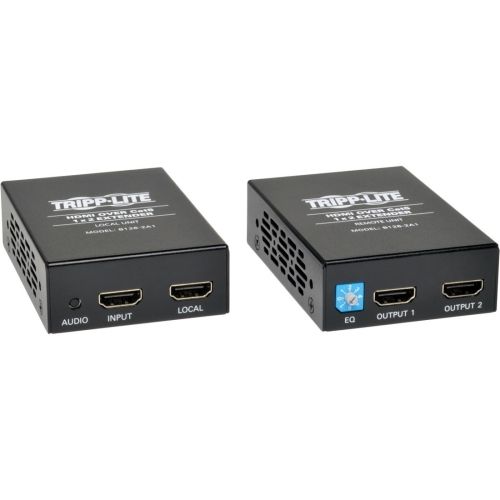

The B126-2A1 HDMI over Cat5/Cat6 Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI signal to two projectors, monitors or televisions. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.HDMI cable (see Tripp Lite''s P568-Series) connects the local monitor and the audio/video source to the transmitter''s HDMI ports and two monitors to the receiver. Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite''s N202-Series) connects the two units. The B126-2A1 can extend a 1080i (60 Hz) signal up to 200 feet, a 1080p (60 Hz) signal up to 150 feet and a 3D signal up to 125 feet. You can connect up to three B126-110 remote repeaters in the chain for a maximum of six HDMI displays and full signal extension of 700 feet (1080i), 500 feet (1080p) or 400 feet (3D).In addition to crystal-clear video, the B126-2A1 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Features Extends High-Definition Signals Extends a 1080i (60 Hz) signal up to 200 ft., a 1080p (60 Hz) signal up to 150 ft. and a 3D signal up to 125 ft. Connect up to 3 B126-110 remote repeaters to the chain for maximum signal range of 700 feet (1080i), 500 feet (1080p) and 400 feet (3D) Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite''s N202-Series) Supports the Latest Video and Audio Resolutions Works with all operating systems and HDMI video sources Supports HD resolutions up to 1080p (60 Hz) Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio Supports 24-bit True Color (8 bits per channel) and HDCP Built-in equalization control lets you adjust the image on the local monitor Easy to Set Up and Use Plug-and-play engineering-no software or drivers to download and install Units connect quickly to monitors with HDMI cable, such as Tripp Lite''s P568-Series LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain Included mounting hardware lets you install the units on a wall, rack or pole TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 2
Maximum Operating Distance: 200 ft
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 3
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Product Color: Black
Form Factor: Rack-mountable, Wall Mountable, Pole-mountable
For Country/Region: Europe, United Kingdom
Package Contents: B126-2A1 Kit ( Transmitter And Receiver ), External Power Supply (Input: 100-240V), Mounting Hardware, Screwdriver For Equalization Adjustment, Owner'S Manual
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
