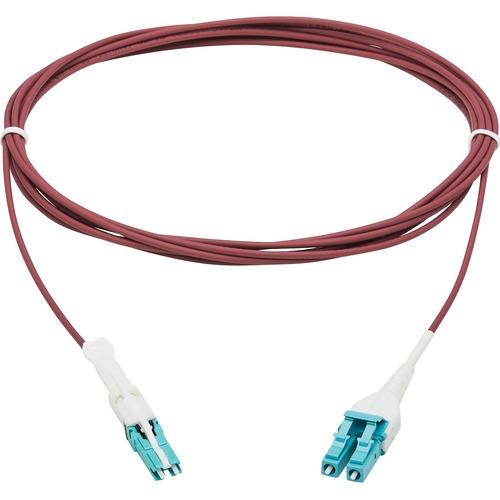

Tripp Lite N822L-03M-MG 400Gb Duplex Multimode 50/125 OM4 Fiber Optic Cable, Magenta, 3 m - 9.84 ft Fiber Optic Network Cable for Network Device, Patch Panel, Network Switch, Transceiver - First End: 2 x CS Male Network - Second End: 2 x LC/PC Female - 40

Tripp Lite N822L-03M-MG 400Gb Duplex Multimode 50/125 OM4 Fiber Optic Cable, Magenta, 3 m - 9.84 ft Fiber Optic Network Cable for Network Device, Patch Panel, Network Switch, Transceiver - First End: 2 x CS Male Network - Second End: 2 x LC/PC Female - 400 Gbit/s - LSZH - 50/125 µm - Magenta, Aqua, White

400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data Networking As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This duplex multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb. Compact CS Connector Designed for the Latest QSFP-DD Transceivers The CS end is 40 percent smaller than a standard LC connector, making it compatible with the latest 400G QSFP-DD transceivers and an excellent solution for high-density network applications. A push/pull tab allows dense vertical stacking in switches or patch panels where space is at a premium and makes the cable easy to install or remove with one hand. Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OM4-rated adapter has a magenta jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

Technical Specifications:
Cable Type: Fiber Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Multi-mode
Core/Cladding Diameter: 50/125 µm
Cable Length: 9.84 ft
Connector Type on First End: CS Network - Male
Connector on First End Details: 2 x CS Network - Male
Connector Type on Second End: LC/PC - Female
Connector on Second End Details: 2 x LC/PC - Female
Features: Push-Pull Tab
Jacket Type: LSZH
Device Supported: Network Device, Patch Panel, Network Switch, Transceiver
Data Transfer Rate: 400 Gbit/s
Product Color: Aqua, White
Jacket Color: Magenta
Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH
Country of Origin: China
