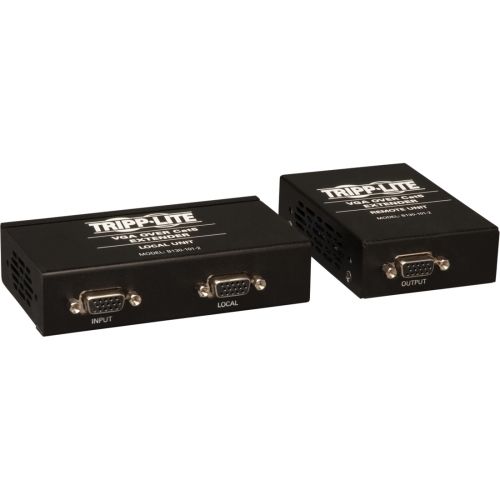

Tripp Lite VGA over Cat5/Cat6 Video Extender Kit Transmitter/Receiver EDID 1000'' - 1 Input Device - 2 Output Device - 1000 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountabl

Tripp Lite VGA over Cat5/Cat6 Video Extender Kit Transmitter/Receiver EDID 1000'' - 1 Input Device - 2 Output Device - 1000 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant - RoHS, TAA Compliance

Tripp Lite''s B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite''s N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110 repeater units. Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. More from the Manufacturer

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 2
Maximum Operating Distance: 1000 ft
Maximum Video Resolution: 1920 x 1440
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Inputs: 1
Number of VGA Outputs: 2
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Input Voltage: 110 V AC, 220 V AC
Product Color: Black
Form Factor: Wall Mountable, Rack-mountable, Pole-mountable
Package Contents: Local (Transmitter) Unit 1 x 4.5 x 2.5 (in.), Remote (Receiver) Unit 1 x 2.5 x 3.5 (in.), Mini-Screwdriver for EQ/Gain Adjustment, 2 x Mounting Hardware Kits, 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A), Owner's Manual
Certifications & Standards: TAA
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
