Tripp Lite VGA Over IP Transmitter/ Extender w/ RS-232 Serial & IR Control TAA - 1 Input Device - 328.08 ft Range - 1 x Network (RJ-45) - 1 x VGA In - 1 x HDMI Out - Serial Port - 1920 x 1440 - Twisted Pair - Category 6 - Rack-mountable, Wall Mountabl

Tripp Lite VGA Over IP Transmitter/ Extender w/ RS-232 Serial & IR Control TAA - 1 Input Device - 328.08 ft Range - 1 x Network (RJ-45) - 1 x VGA In - 1 x HDMI Out - Serial Port - 1920 x 1440 - Twisted Pair - Category 6 - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant - TAA Compliance

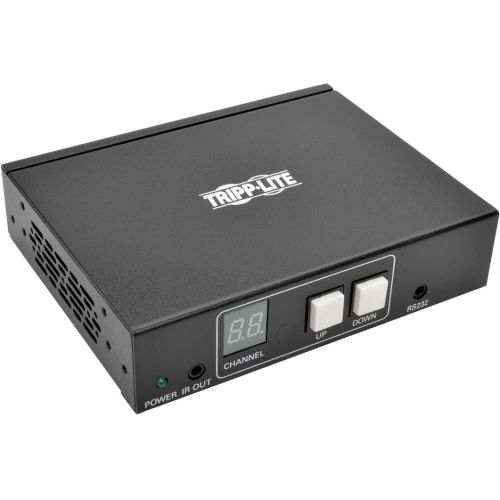

The B160-001-VSI VGA Video + Audio with RS-232 Serial and IR Control over IP Transmitter extends and distributes VGA video + audio, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch located up to 328 feet (100 m) away. With an additional 328 feet between the switch and the receiver (sold separately), the total maximum distance from source to display is 656 feet (200 m).Designed for managed network switches with IGMP, which allow login and remote management via switch interface, the B160-001-VSI displays a single source on a single display or distributes a single signal to multiple displays. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation.The B160-001-VSI supports video resolutions up to 1920 x 1440, including 1080p, though it''s limited to the maximum resolution of the receiver (sold separately). You can send the video source to any analog or digital display, including HDMI and VGA. It extends IR control signals that control a source, such as a Blu-ray™ player, from a remote display, as well as RS-232 signals at serial baud rates up to 57600 Bps.Compatible with Tripp Lite''s B160-100-DPSI, B160-100-HDSI, B160-200-HSI and B160-100-VSI IP receivers. Features Extends and Distributes VGA Video + Audio, Serial and IR Control Signals over Cat5/6 Cabling Converts source video to IP-based signal transmitted to and distributed through network switch Extends signal up to 328 ft. (100 m) from switch Can also connect directly to receiver up to 328 ft. away Designed for Managed Network Switches with IGMP Allows login and remote management via switch interface Display single source on single display or distribute single signal to multiple displays Video source can be sent to any analog or digital display, including HDMI and DisplayPort Connect up to 64 transmitters and 255 receivers in single managed switch installation HDMI output for connecting a local display Enhanced Technical Features Supports video resolutions up to 1920 x 1440, including 1080p Uses H.264 video compression standard Transmits on 20-60 kHz IR frequency Extends IR control signals that control a source from a remote display Supports RS-232 serial baud rates up to 57600 Bps HDCP and 3D compatible Plug and Play Functionality No software or drivers required Hardware included for mounting on wall, rack or pole Compatible with B160-100-DPSI, B160-100-HDSI, B160-200-HSI and B160-100-VSI IP receivers TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Maximum Operating Distance: 328.08 ft
Maximum Video Resolution: 1920 x 1440
Network (RJ-45): Yes
HDMI Out: Yes
VGA In: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Outputs: 1
Number of VGA Inputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Form Factor: Rack-mountable, Wall Mountable, Pole-mountable
Package Contents:

B160-001-VSI Video Extender Transmitter, External Power Supply w/NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A), Plug Adapters for U.S., U.K., Europe and Australia, IR-Out Cable, 3.5 mm to DB9 Adapter Cable (M/F), Mounting Hardware, Owner's Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
