Tripp Lite VGA & RS232 over Cat5/Cat6 Video Extender Transmitter & Receiver EDID - 1 Input Device - 2 Output Device - 1000 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - Serial Port - 1920 x 1440 - Rack-mountable, Wall Mountable, Pole

Tripp Lite VGA & RS232 over Cat5/Cat6 Video Extender Transmitter & Receiver EDID - 1 Input Device - 2 Output Device - 1000 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - Serial Port - 1920 x 1440 - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant - RoHS, TAA Compliance

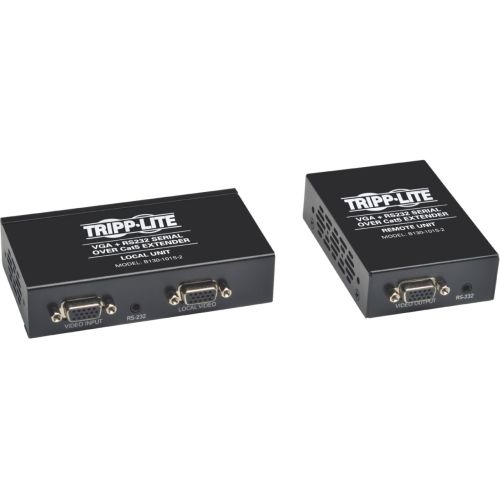

Tripp Lite''s B130-101S-2 allows you to extend a 1920 x 1440 (60Hz) Video and RS232 Serial signal up to 500 ft., or a 1024 x 768 (60Hz) Video and RS232 Serial signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite''s N022-01K-GY (Cat5) and N222-01K-GY (Cat6). For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The local (Transmitter) unit features an additional VGA port for the connection of a local monitor. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wall mounted, rack mounted or pole mounted. Ideal for digital signage situations needing serial access, such as bar code scanners or touchscreen monitors.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 2
Maximum Operating Distance: 1000 ft
Maximum Video Resolution: 1920 x 1440
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Inputs: 1
Number of VGA Outputs: 2
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Input Voltage: 120 V AC, 230 V AC, 5 V DC
Product Color: Black
Form Factor: Rack-mountable, Wall Mountable, Pole-mountable
Package Contents: 1 x Local (Transmitter) unit 4.5 x 2.5 (in.), 1 x Remote (Receiver) unit 2.5 x 3.5 (in.), Mini-Screwdriver for EQ/Gain adjustment, 2 x Mounting Hardware Kits, 2 x External Power Supply, Owner's Manual
Certifications & Standards: Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule Purchases
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
