Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Tranceiver, Serial and IR Control 4K x 2K 70m 230ft - Serial & IR, 4Kx2K UHD / 1080p, Up to 230-ft. (70M) - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Wall Mountable, Rack-mountable, Pole-mou

Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Tranceiver, Serial and IR Control 4K x 2K 70m 230ft - Serial & IR, 4Kx2K UHD / 1080p, Up to 230-ft. (70M) - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Wall Mountable, Rack-mountable, Pole-mountable" - TAA Compliance

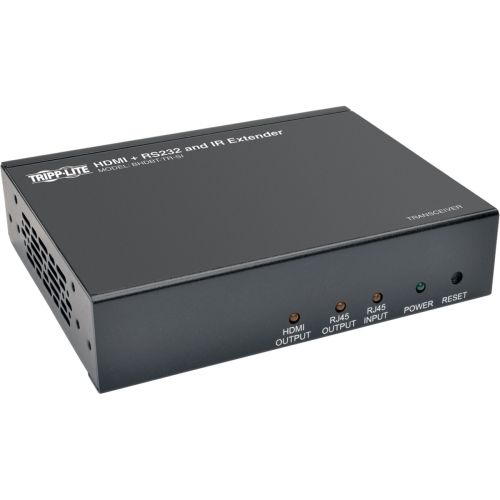

Insert the BHDBT-TR-SI HDBaseT Class B (HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Transceiver between the transmitter and receiver units in your Tripp Lite HDBaseT Class B installation to extend the range of your signal. Connect its HDMI port to a projector, monitor or television to expand your installation. Using a single Cat5e/6/6a cable, the BHDBT-TR-SI transmits uncompressed HDMI audio and video, RS-232 serial and IR control signals up to 230 feet (70 m) from the previous unit in the chain (either the transmitter or another transceiver), including a 1920 x 1080 (1080p) signal @ 60 Hz. It can also extend an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) video signal up to 130 feet (40 m) from the previous unit in the chain. Add up to five BHDBT-TR-SI Extender Transceivers to the chain for a total range up to 780 feet (4K x 2K) or 1,380 feet (1080p) with a monitor connected to each transceiver.RS-232 serial signals and IR remote control signals (@ 39 KHz) also pass through the transceiver, so your HDBaseT installation can control such RS-232 devices as scanners and touchscreen displays at baud rates up to 115 Kbps. You can also operate a Blu-ray player using its remote when at the remote monitor and vice versa. Locking HDMI ports (ideal for use with Tripp Lite''s P569-006-LOCK High-Speed HDMI cables with locking connectors) prevent cables from coming loose or undone, ensuring an intact signal. Attach the BHDBT-TR-SI to a wall, rack or pole using the included hardware. Features Extends and Expands Your HDBaseT Class B (HDBaseT-Lite) Installation Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) @ 24/30 Hz signal up to 130 feet (40 m) Extends a High Definition 1920 x 1080 (1080p) @ 60 Hz signal up to 230 feet (70 m) Connects to next link in the chain with just one Cat5e/6/6a cable Add up to 5 transceivers to further expand the range of your installation up to 780 feet (4K x 2K) or 1,380 feet (1080p) with a monitor attached to each transceiver Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio Supports 36-bit Deep Color (12 bits per channel), CEC passthrough, 3D video, EDID and HDCP Allows RS-232 and IR Control Passthrough Passes through RS-232 serial signals at 115 Kbps full-duplex baud rates for devices such as scanners and touchscreen monitors Passes through IR remote control signals so you can operate your Blu-ray player with its remote while standing at the remote monitor (and vice versa) Easy to Set Up and Use Plug-and-play engineering-no software or drivers to download and install Inserts quickly between transmitter and receiver in Tripp Lite HDBaseT Class B installation Included mounting hardware lets you install each unit on a wall, rack or pole Locking HDMI ports (ideal for use with Tripp Lite''s P569-006-LOCK HDMI cables) prevent cables from coming loose or disconnected, ensuring an intact signal TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Technical Specifications:
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 229.66 ft
Graphics Modes: 4K
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Product Color: Black
Receiver Height: 1.20"
Receiver Width: 5"
Receiver Depth: 4"
Form Factor: Wall Mountable, Rack-mountable, Pole-mountable
Receiver Weight (Approximate): 1 lb
Package Contents:

BHDBT-TR-SI Video Console, External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A), Mounting Hardware, Owner'S Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH
Country of Origin: Taiwan
TAA Compliant: Yes
