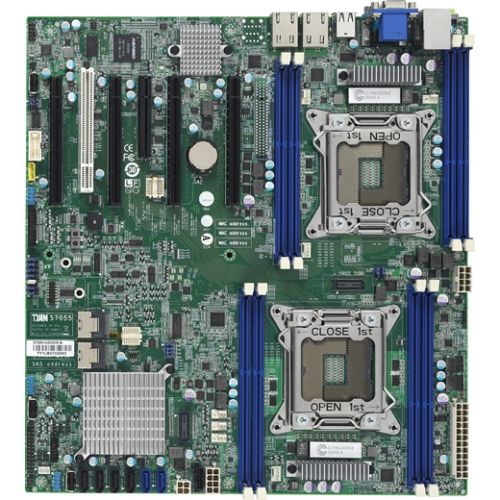

Tyan S7055 Server Motherboard - Intel Chipset - Socket R LGA-2011 - 128 GB DDR3 SDRAM Maximum RAM - DDR3-1066/PC3-8500, DDR3-800/PC3-6400, DDR3-1333/PC3-10600 - DIMM, UDIMM, LRDIMM, RDIMM - 8 x Memory Slots - Gigabit Ethernet - 3 x RJ-45 - 6 x SATA Interf

Tyan S7055 Server Motherboard - Intel Chipset - Socket R LGA-2011 - 128 GB DDR3 SDRAM Maximum RAM - DDR3-1066/PC3-8500, DDR3-800/PC3-6400, DDR3-1333/PC3-10600 - DIMM, UDIMM, LRDIMM, RDIMM - 8 x Memory Slots - Gigabit Ethernet - 3 x RJ-45 - 6 x SATA Interfaces - China RoHS, RoHS-6 Compliance

Intel® C602ChipsetHigh-end dual-socket server platform forHPC and GPU applicationswith (3) GbE and iKVM supportDual LGA2011 socket supports (2) E5-2600 series CPUIntel® C602 PCH and INTEL SAS ROM key design(4+4) 240-pin DDR3 DIMM slots DDR3/DDR3L 800/1066/1333/1600 RDIMM, 800/1066/1333 UDIMM/LRDIMM support DDR3 Unbuffered and Register ECCSupport up to 128GB RDIMM/64GB URDIMM memory(4) PCI-E Gen3 x16 slots(1) PCI-E Gen2 x8 slots(4) SATA-II connectors w/ RAID 0, 1, 10, 5 support(2) SATA-III connectors(2) 10GbE Base-T Capability (S7055AGM3NR-2T)

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C602
Total Processor Supported: 2
Processor Socket: Socket R LGA-2011
Processor Supported: Xeon
QuickPath Interconnect: 8 GT/s
64-bit Processing: Yes
Number of Memory Slots: 8
Memory Form Factor: DIMM, UDIMM, LRDIMM, RDIMM
Maximum Memory Supported: 128 GB
Memory Standard: DDR3-1066/PC3-8500, DDR3-800/PC3-6400, DDR3-1333/PC3-10600
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1333 MHz, 1066 MHz, 800 MHz
Controller Type: Serial ATA/600, Serial ATA/300, 3Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2300
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC262
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Number of PCI Slots: 1
PCI Express Standard: PCI Express 3.0, PCI Express 2.0
Total Number of PCI Express Slots: 5
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 3
Number of SATA Interfaces: 6
Number of SAS Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 7
Onboard Serial Header: Yes
Form Factor: SSI EEB
Width: 12"
Depth: 13"
Package Contents: S7055 Server Motherboard, 1 X Quick Installation Guide, 1 X TYAN Installation CD, 1 X I/O Shield, 6 X SATA Signal Cables
Compatibility: Chassis 4U Barebone FT48-B7055
Certifications & Standards: ACPI 2.0, CE, FCC
Environmentally Friendly: Yes
Environmental Certification: RoHS-6, China RoHS
