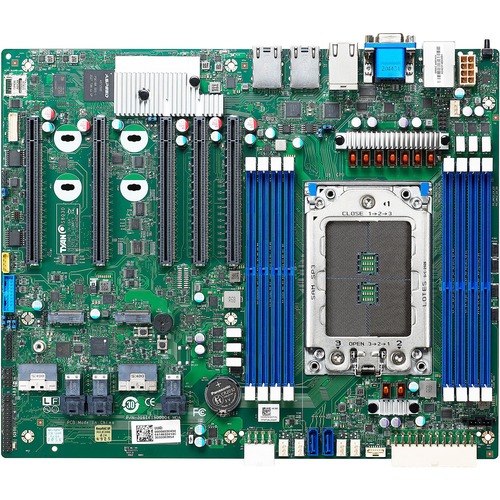

Tyan Tomcat S8030 Workstation Motherboard - AMD Chipset - Socket SP3 - ATX - EPYC Processor Supported - 2 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM - 8 x Memory Slots - Gigabit Ethernet - 14 x SATA Interfaces S8030GM2NE

Tyan Tomcat S8030 Workstation Motherboard - AMD Chipset - Socket SP3 - ATX - EPYC Processor Supported - 2 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM - 8 x Memory Slots - Gigabit Ethernet - 14 x SATA Interfaces

Specifications

• Mfr Part Number: S8030GM2NE
• CPU: AMD Socket SP3
  • Supports AMD EPYC 7002 Series Processor
  • Supports up to 240W CPU
• Chipset: N/A
• Memory: 8x DIMM Slots, 8 Channels per CPU, ECC, Support Up to Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM
• Slots: 5x PCI-Express Gen4 x16 Slot
• Storage:
  • SATA: 2x SATA Ports, 3x SFF-8643 for (12) SATA ports
  • M.2: 2x M.2 Port, supports type 2280/22110 by PCI-E Gen3 interface
• Video: Aspeed AST2500 BMC Graphics, Up to 1920x1200
• LAN: 2x Intel I210 GbE ports, 1x Realtek RTL 8211E PHY Dedicated IPMI LAN
• Ports: 2x USB 3.1 Ports (rear), 1x header COM, 1x D-Sub 15-pin VGA port (rear), 2x GbE ports, 1x GbE dedicated for IPMI, 2x12-pin SSI front panel header, 2x SATA-III connectors, 12x SATA ports from (3) Mini SAS HD connectors
• Power Connector: 1x 24-pin Power Connector, 2x 8-pin Power Connectors
• Form Factor: ATX, 12.0 x 9.9 inch / 305.0 x 250.8 mm
• RoHS Compliant

Technical Specifications:
Chipset Manufacturer: AMD
Total Processor Supported: 1
Processor Socket: Socket SP3
Processor Supported: EPYC
Number of Memory Slots: 8
Memory Form Factor: RDIMM, LRDIMM
Maximum Memory Supported: 2 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 3200 MHz
Controller Type: Serial ATA/600
RAID Supported: No
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x16 Slots: 5
Total Number of USB Ports: 2
Number of USB 3.1 Ports: 2
VGA: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 14
Number of M.2 Interfaces: 2
Form Factor: ATX
Width: 12"
Depth: 9.9"
Package Contents:

Tomcat HX S8030 , 1 x Quick Installation Guide, 1 x I/O Shield, 2 x SATA signal Cables

Brand Compatibility: AMD
Environmentally Friendly: Yes
Environmental Certification: RoHS-6, China RoHS, WEEE
Country of Origin: China
