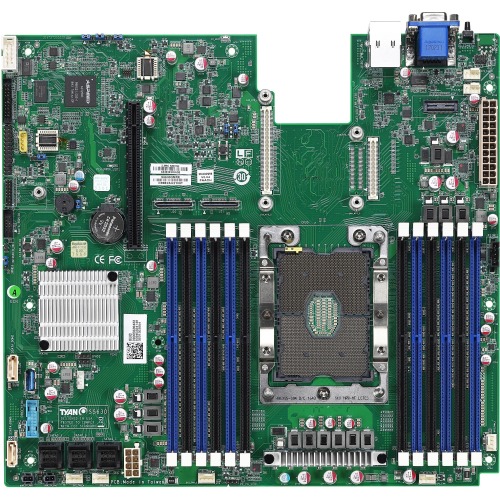

Tyan Tempest CX S5630 Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1 Pack - SSI CEB - 1 x Processor Support - 1.50 TB DDR4 SDRAM Maximum RAM - 2.67 GHz Memory Speed Supported - DIMM, LRDIMM, RDIMM - 12 x Memory Slots - Serial ATA/600 RAID Supp

Tyan Tempest CX S5630 Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1 Pack - SSI CEB - 1 x Processor Support - 1.50 TB DDR4 SDRAM Maximum RAM - 2.67 GHz Memory Speed Supported - DIMM, LRDIMM, RDIMM - 12 x Memory Slots - Serial ATA/600 RAID Supported Controller - Intel VROC - Intel RSTe - 10, 5, 1, 0 RAID Levels - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2500 - Gigabit Ethernet - 1 x PCI Express x16 Slots - 2 x USB Ports - VGA - 2 x SATA Interfaces
Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C621
Total Processor Supported: 1
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon Silver, Xeon Gold, Xeon Platinum
Number of Memory Slots: 12
Memory Form Factor: DIMM, LRDIMM, RDIMM
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz
Controller Type: Serial ATA/600
Intel VROC: Yes
Intel RSTe: Yes
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 2
Number of Mini-SAS Interfaces: 3
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.0 Ports: 3
Form Factor: SSI CEB
Width: 12"
Depth: 10.9"
Package Contents:

Tempest CX S5630 Single Socket Xeon Scalable Processor Server Motherboard, 1 x Quick Installation Guide, 1 x TYAN Device Driver CD

Environmentally Friendly: Yes
Environmental Certification: RoHS-6, WEEE, China RoHS
Country of Origin: Taiwan
