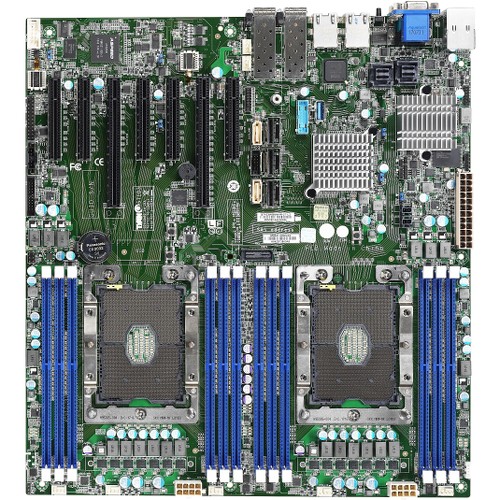

Tyan Tempest CX S7103 Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 12 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 2 x SATA Interfaces S7103WGM2NR

Tyan Tempest CX S7103 Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 12 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 2 x SATA Interfaces
Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C621
Total Processor Supported: 2
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
Number of Memory Slots: 12
Memory Form Factor: DIMM, LRDIMM, RDIMM
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
Intel RSTe: Yes
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 7
Number of PCI Express x8 Slots: 5
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 2
Number of Mini-SAS Interfaces: 5
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.0 Ports: 3
Form Factor: Extended ATX
Width: 13"
Depth: 12"
Package Contents:

Tempest CX S7103 Low Cost 2P Rack Optimized Server Board, 1 x Quick Installation Guide, 1 x TYAN Device Driver CD

Environmentally Friendly: Yes
Environmental Certification: RoHS-6, WEEE
Country of Origin: Taiwan
