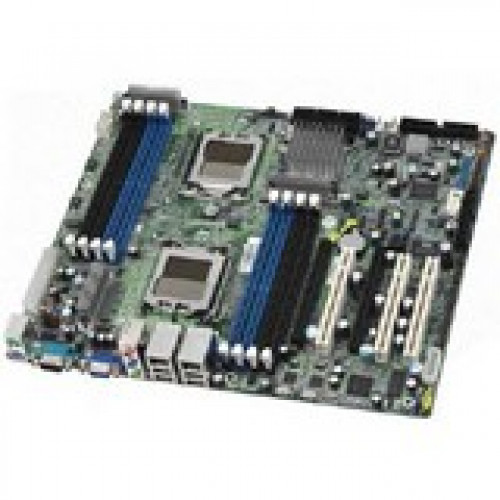

Tyan Thunder (S2927-E) Server Motherboard - NVIDIA Chipset - Socket F (1207) - 32 GB - DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2-400/PC2-3200 - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces S2927A2NRF-E

Tyan Thunder (S2927-E) Server Motherboard - NVIDIA Chipset - Socket F (1207) - 32 GB - DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2-400/PC2-3200 - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
Technical Specifications:
Chipset Manufacturer: NVIDIA
Chipset Model: NFP 3600
Total Processor Supported: 2
Processor Technology: HyperTransport Technology
Processor Socket: Socket F LGA-1207
Processor Supported: Opteron
HyperTransport Speed (MHz): 1000
Number of Memory Slots: 8
Maximum Memory Supported: 32 GB
Memory Standard: DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2-400/PC2-3200
Memory Technology: DDR2 SDRAM
Memory Speed Supported: 667 MHz, 533 MHz, 400 MHz
Controller Type: Floppy Controller, Serial ATA/300, Ultra ATA/133 (ATA-7)
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC262
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Number of PCI Slots: 3
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
Network (RJ-45): Yes
Number of IDE Interfaces: 1
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 2
Total Number of Onboard FireWire/i.LINK Ports: 1
Onboard LEDs Header: Yes
Form Factor: ATX
Width: 10.2"
Depth: 12"
Additional Information:

Dual Channel memory supported

Chipsets:

nVIDIA NFP3600, SMSC SCH5017

BIOS Features:

AMI BIOS 8Mbit Flash, Supports ACPI 2.0, PnP, DMI2.0, WfM2.0 Power Management

Server Management:

Renesas H8S2167 BMC Controller, BT, KCS, Logging support, IPMI-over-LAN, Remote power on/off and reset
