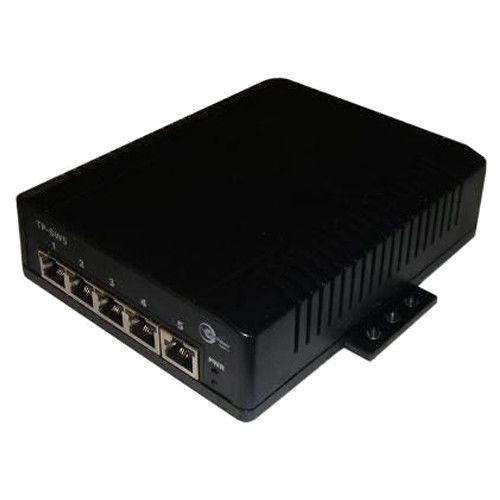

Tycon Power POE 5 Port Switch - 5 Ports - 2 Layer Supported - Twisted Pair - PoE Ports - Rail-mountable - 2 Year Limited Warranty TP-SW5G-24

Tycon Power POE 5 Port Switch - 5 Ports - 2 Layer Supported - Twisted Pair - PoE Ports - Rail-mountable - 2 Year Limited Warranty

The SW5 Series Power Over Ethernet (POE) switches offered by Tycon Power Systems are fully automatic high speed 5 port Ethernet switches with up to 2A of POE power per port. The switch comes in 4 models:TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port.TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port.TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port.TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port.

Technical Specifications:
Total Number of Network Ports: 5
Token Ring Port: No
LRE Port: No
Uplink Port: Yes
Bypass: No
Modular: No
Management Port: No
USB: No
Number of PoE (RJ-45) Ports: 5
Port/Expansion Slot Details: 4 x Gigabit Ethernet Network, 1 x Gigabit Ethernet Uplink
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Layer Supported: 2
PoE (RJ-45) Port: Yes
Input Voltage: 24 V DC
Power Source: PoE
Form Factor: Rail-mountable
Height: 1.6"
Width: 4.6"
Depth: 6.3"
Weight (Approximate): 13.51 oz
Package Contents: POE 5 Port Switch, DIN Rail mounts
Certifications & Standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, CE, FCC, UL, CB
Environmentally Friendly: Yes
Environmental Certification: RoHS
