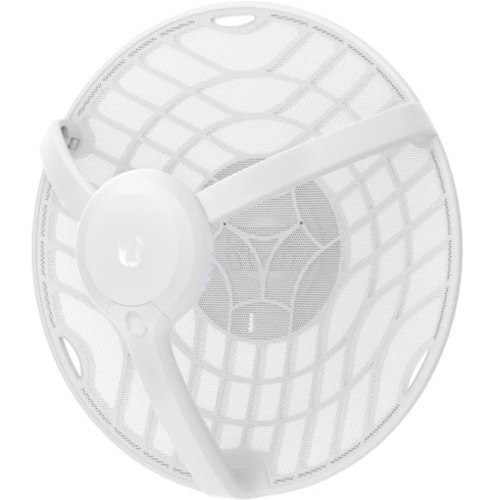

UBIQUITI airMAX GigaBeam Long-Range 60/5 GHz Radio GBE-LR-US

Ubiquiti airMAX GigaBeam Long-Range 60/5 GHz Radio

airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps Throughput and Up to 2 km RangeFeaturing a high-gain dish antenna, the GigaBeam LR is a 60 GHz radio designed for low-interference and high-throughput connectivity in long-range deployments. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi. Features: 60 GHz radio with 5 GHz radio backup Low-interference 60 GHz spectrum Up to 1+ Gbps with low latency Long-range performance 2.4 GHz management radio Full bandwidth support: 2.16 GHz

Technical Specifications:
Network (RJ-45): Yes
Ethernet Technology: Gigabit Ethernet
Height: 11.9"
Width: 16.3"
Weight (Approximate): 3.09 lb
Package Contents:

airMAX GigaBeam Long-Range 60/5 GHz Radio, Pole Mount

Additional Information:

Enclosure: Aluminum, UV-stabilized Polycarbonate, Antenna Gain:
5 Ghz: 11 dBi, 60 Ghz: 38 dBi
Max. Power Consumption: 11W, Power Method: Passive PoE, Pins 4, 5+ and 7, 8-, Power Supply: 24VDC, 0.5A Gigabit PoE Adapter (Included), Voltage Range: +22 to +26VDC, LEDs: Power/Ethernet/5G/60G, Wind Loading:
56 N @ 200 km/h, <(12.6 lbf @ 125 mph)
Wind Survivability:
200 km/h, (125 mph)
ESD/EMP Protection: ± 24kV Contact/Air, Operating Temperature: -40 to 60° C (-40 to 140° F), Operating Humidity: 5 to 95% Noncondensing, Certifications: FCC, IC, CE, Max. Conducted TX Power
5/60 GHz Combined: 25 dBm
Channel Bandwidth
60 Ghz: 2160 Mhz, 5 Ghz: 20/40/80 Mhz
US/CA, U-NII-1: 5150 - 5250, U-NII-2A: 5250 - 5350, U-NII-2C: 5470 - 5725, U-NII-3: 5725 - 5850, 57,000 - 66,000, Worldwide:
5180 - 5875, 57,000 - 66,000
Worldwide: 2412 - 2472, US/CA: 2412 - 2462

Features: Wi-Fi
