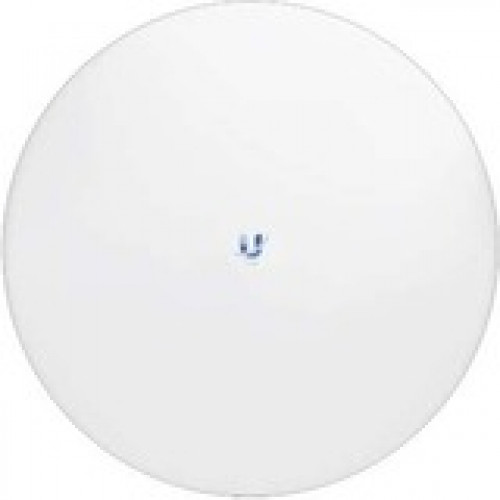

UBIQUITI LTU Pro 600 Mbit/s Wireless Access Point - 5 GHz - 1 x Network (RJ-45) - Gigabit Ethernet - Pole-mountable - 1 Pack LTU-PRO-US

Ubiquiti LTU Pro 600 Mbit/s Wireless Access Point - 5 GHz - 1 x Network (RJ-45) - Gigabit Ethernet - Pole-mountable - 1 Pack

OverviewFeaturing an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.Proprietary LTU TechnologyBased on Ubiquiti''s LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps of real TCP/IP throughput and modulation rates of up to 4096QAM.CPE ModesThe LTU Pro supports both bridged and built-in hardware NAT router modes to suit your specific deployment.Frequency SplitThe LTU Pro can use different frequencies for TX and RX to avoid interference.Robust Pole Mount Design.The LTU Pro is designed for quick yet reliable mounting on a pole. It features a built-in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°.Channel Width FlexibilityChannel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Channel width options include the following: 10 MHz 20 MHz 30 MHz 40 MHz 50 MHz Up to 100 MHz Auto Power AdjustmentsBy default, the Auto Output Power option allows the LTU Pro to set the output power (EIRP) to the appropriate level.Signal ControlThe LTU Pro''s TX output power is controlled by the AP''s target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.Convenient ConfigurationTo manage the LTU Pro, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU Pro.Within the LTU Configuration Interface, you can manually configure the LTU Pro or manage it from the AP side using the Find My AP feature. The LTU Pro will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU Pro.Integrated GPSBuilt-in GPS improves synchronization and allows map and Fresnel views on the Dashboard.

Technical Specifications:
Frequency Band: 5 GHz
Total Number of Antennas: 1
Number of Internal Antennas: 1
Wireless Transmission Speed: 600 Mbit/s
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Form Factor: Pole-mountable
Height: 12.5"
Width: 12.5"
Depth: 6.9"
Weight (Approximate): 2.87 lb
Package Contents:

LTU Pro Wireless Access Point, 24V, 0.5A Gigabit PoE Adapter, Pole-Mount Kit
