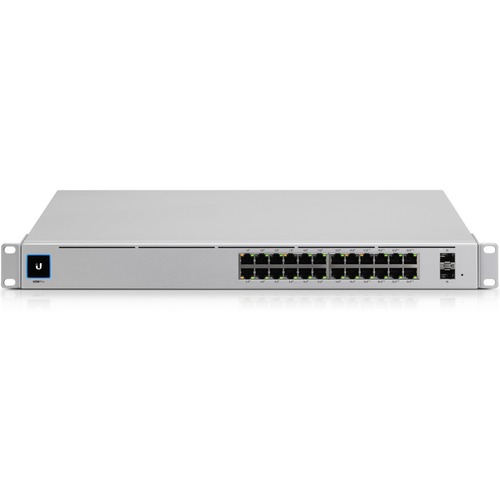

UBIQUITI USW-Pro-24-POE Layer 3 Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - 1 Year Limited Warranty USW-PRO-24-POE

Ubiquiti USW-Pro-24-POE Layer 3 Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - 1 Year Limited Warranty

Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models: USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports Layer 3 FeaturesIn addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.Near-Silent CoolingThe UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.Fiber ConnectivitySFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.802.3bt PoE++PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE.Redundant Power OptionThe UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.

Technical Specifications:
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE+, 8 x Gigabit Ethernet PoE++, 2 x 10 Gigabit Ethernet Uplink
Media Type Supported: Optical Fiber, Twisted Pair
Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 10GBase-X
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Layer Supported: 3
Manageable: Yes
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.4"
Depth: 11.2"
Weight (Approximate): 9.48 lb
Package Contents:

USW-Pro-24-POE Layer 3 Switch, Rack Mount Hardware

Environmentally Friendly: Yes
Environmental Certification: WEEE
