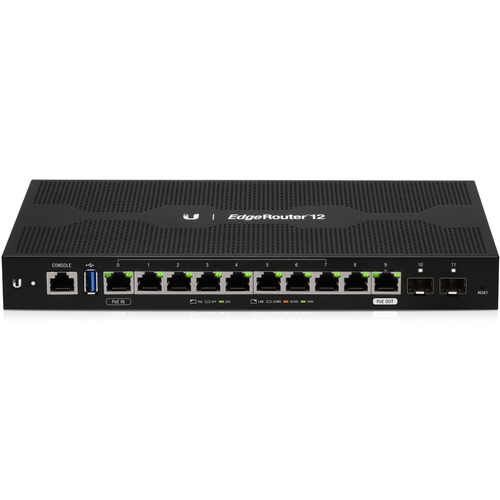

UBIQUITI EdgeRouter ER-12 Router - 10 Ports - PoE Ports - Management Port - 2 - Gigabit Ethernet - 1U - Desktop, Rack-mountable - 1 Year ER-12

Ubiquiti EdgeRouter ER-12 Router - 10 Ports - PoE Ports - Management Port - 2 - Gigabit Ethernet - 1U - Desktop, Rack-mountable - 1 Year

Advanced Routing Technology for the Masses Ubiquiti Networks introduces three new routers for the EdgeMAX® platform: EdgeRouter™ 4 EdgeRouter 6P EdgeRouter 12 They join the array of cost-effective Gigabit routers: 3-Port EdgeRouter Lite 5-Port EdgeRouter PoE 8-Port EdgeRouter 8-Port EdgeRouter Pro High Performance The EdgeRouter 4, 6P, and 12 are each capable of routing up to 3.4 million packets per second. The EdgeRouter and EdgeRouter Pro route up to 2 million+ packets per second, and the EdgeRouter Lite and EdgeRouter PoE route up to 1 million packets per second.PoE Flexibility The EdgeRouter 6P and PoE include configurable PoE ports to power airMAX® products, and the EdgeRouter 12 has a PoE input port and a PoE passthrough port.Fiber Connectivity For fiber uplinking, the EdgeRouter 4 and EdgeRouter 6P provide an SFP port. The EdgeRouter 12 features dual SFP ports, while the EdgeRouter offers two combination RJ45/SFP ports.EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit.Manage Your NetworkDHCP Server Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces.Easily control dynamic and static IP addressing for your network devices.Monitoring Tools Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.Secure Your NetworkFirewall Policies Organize the rules you apply in the order you specify.Firewall Groups Apply the policies to groups filtered by IP address, network address, or port number.NAT Rules The EdgeRouter changes packet addressing based on your customized source and destination NAT rules.Direct Traffic Flow Interfaces Each port functions as an independent interface.You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation.Routing Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.SoftwareIntuitive User InterfaceThe EdgeRouter provides a graphical user interface designed for convenient setup and control. Easily configure the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.Even greater convenience and flexibility is provided by the UNMS™ app, which makes it possible to manage the EdgeRouter remotely from your mobile device.Powerful FeaturesEdgeOS® is a sophisticated operating system loaded with robust features, including: VLAN interfaces for network segmentation Static routes and support of routing protocols: OSPF, RIP, BGP, and MPLS Firewall policies and NAT rules Application identification with Deep Packet Inspection (DPI) DHCP services Quality of Service (QoS) Network administration and monitoring tools Administrator and operator accounts Comprehensive IPv6 support

Technical Specifications:
Total Number of Ports: 10
USB: Yes
Management Port: Yes
Number of Total Expansion Slots: 2
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T, 1000Base-X
PoE (RJ-45) Port: Yes
Redundant Power Supply Supported: No
Compatible Rack Unit: 1U
Form Factor: Desktop, Rack-mountable
Height: 1.2"
Width: 10.6"
Depth: 5.4"
Weight (Approximate): 1.54 lb
Package Contents:

EdgeRouter ER-12 Router, External AC Power Adapter, 24W (24V, 1A)

TAA Compliant: No
