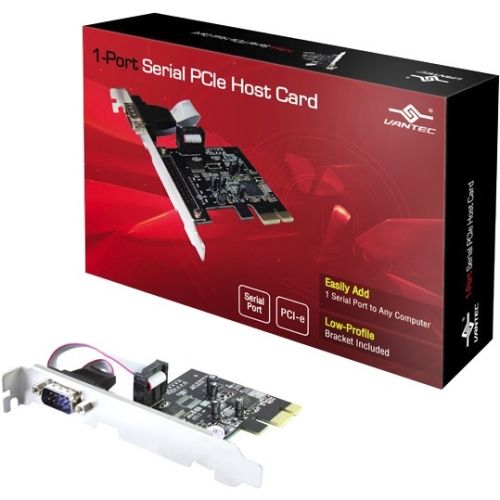

Vantec 1-Port Serial PCIe Host Card - 1 Pack - Low-profile Plug-in Card - PCI Express x1 - PC UGT-PCE10SR

Vantec 1-Port Serial PCIe Host Card - 1 Pack - Low-profile Plug-in Card - PCI Express x1 - PC

This UGT-PCE10SR is part of a series of I/O card based on the PCI Express technology. It offers one Serial Communication port that enable you to connect serial devices like Point of Sale terminals, modems, printers, scanners, cash registers, bar code readers, keypads, numeric displays, electrical scales, data acquisition equipment, and other serial devices for the PC and compatible systems. This card is designed to meet PCI Express Specification and with the standard or low profile brackets can be installed virtually in any PC with all major operating systems. The I/O address and IRQ are automatically configured to simplify the installation at the same time offers a reliable and high performance solution for Serial Communication.

Technical Specifications:
Host Interface: PCI Express x1
Data Transfer Rate: Up to 115200bit/s
UART Type: 16C950
Platform Supported: PC
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 0.7"
Width: 2.4"
Length: 2.7"
Package Contents: 1-Port Serial PCIe Host Card, 1 x Driver CD, 1 x User Manual, 1 x Low Profile Brackets
