Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - TAA Compliance VCS-4P1

Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - TAA Compliance

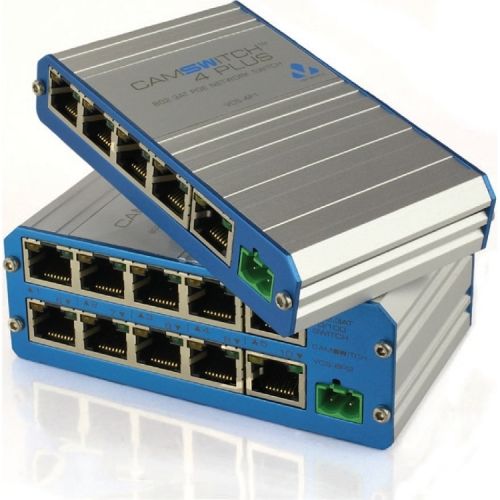

Compact and versatile 802.3at POE switches CAMSWITCH 4 PLUS REPLACES CAMSWITCH QUAD. CAMSWITCH Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation. An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget. CAMSWITCH 4 Plus features 4 802.3at POE ports, and a 5th port for downlink. CAMSWITCH 8 Plus features 8 802.3at POE ports, as well as 2 further network ports, and is compatible with Veracity''s rack-mounting system. 802.3at POE Power CAMSWITCH Plus can deliver up to the full 25.5 watts required by IEEE 802.3at POE Plus devices such as outdoor or PTZ cameras. A selection of power supply options are available to suit the total power requirements and placement considerations of the installation. 40 watt and 78 watt camera/device power budgets are available from standard power supplies, or the full 200 watts for 8 POE Plus ports can be delivered using Veracity''s forthcoming rackmount power solutions. CAMSWITCH Plus can be powered by POE, doubling the distance to connected devices or enabling network connections to be easily added to existing installations. Up to 25 watts budget at 200 metres is available using Veracity''s OUTSOURCE Plus injector. When a 57V power supply is used, CAMSWITCH Plus can deliver enhanced POE to Veracity OUTREACH Max, HIGHWIRE PowerStar and LONGSPAN products for maximum range. Designed for installersCamswitch Plus''s network ports configure automatically for speed, duplex and crossover, and deliver 802.3af/at POE to compliant devices with no user setup required. Snap-on clips are provided for secure wall mounting, and up to 4 units can be mounted in an optional 1U rack bracket.

Technical Specifications:
Total Number of Network Ports: 5
Uplink Port: No
Modular: No
Stack Port: No
Port/Expansion Slot Details: 5 x Fast Ethernet Network
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Layer Supported: 2
Manageable: No
Power Source: PoE, Power Supply
Redundant Power Supply Supported: No
Height: 0.9"
Width: 4.3"
Depth: 2.5"
Weight (Approximate): 4.76 oz
Environmentally Friendly: Yes
Environmental Certification: RoHS
NDAA Compliant: Yes
