Vertiv Co Avocent 32 Port ACS8000 with Cellular capability @ 4G/LTE. Only offered in NA at this time. TAA compliant NA, TAA - Advanced Serial Console Server | Remote Console | Cellular Support | In-band and Out-of-band Connectivity | 8 to 48 rs232 termina

Avocent 32 Port ACS8000 with Cellular capability @ 4G/LTE. Only offered in NA at this time. TAA compliant NA, TAA - Advanced Serial Console Server | Remote Console | Cellular Support | In-band and Out-of-band Connectivity | 8 to 48 rs232 terminal | Dual AC power | 2-Year Full Coverage Factory Warranty - Optional Extended Warranty Available

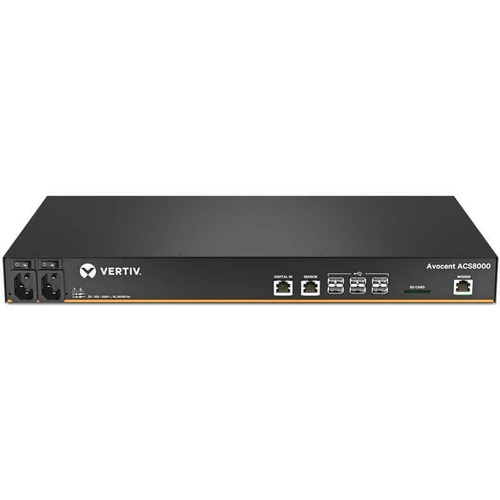

The Vertiv Avocent ACS8000 Cellular advanced serial console server series delivers secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers, as well as cloud and colocation facilities. Now with cellular capabilities, the Vertiv Avocent ACS8000 Cellular provides flexibility to access devices when wired networks are down (failover) or not available at the device location. This serial console system serves as a secure management gateway and single point of entry keeping you connected to critical IT equipment even in the event of partial or total data center outages. With environmental monitoring, IoT integration, and remote networking abilities, the Vertiv Avocent ACS8000 Cellular is ideal for edge locations, enterprise data centers, and hyperscale or colocation facilities. More from the Manufacturer

Technical Specifications:
Device Type: Console Server
Processor Manufacturer: ARM
Standard Memory: 1000 MB
Memory Technology: DDR3 SDRAM
Media Type Supported: Optical Fiber, Twisted Pair
Number of Total Expansion Slots: 2
Ethernet Technology: Gigabit Ethernet
Network Standard: 10/100/1000Base-T, 1000Base-X
Network (RJ-45): Yes
USB: Yes
Serial Port: Yes
Management Port: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 8
Number of Serial Ports: 32
Height: 1.8"
Width: 17.3"
Depth: 9.5"
Weight (Approximate): 7 lb
Additional Information:

CPU: Dual-core ARM Cortex-A9 MPCore with CoreSight, Memory: 16GB eMMC Flash, Interfaces:
1 full size SD Card slot, Environmental sensor port on RJ45 (1-wire), 4 digital-in ports (smoke, leak, pressure and dry contact sensors)
Power: Optional dual entry, redundant AC and DC power supplies, Operating Temp: 14°F to 140°F (-10°C to 60°C), Storage Temp: -4° to 158°F (-20° to 70°C), Humidity: 20% to 80% noncondensing, Operating Humidity: 5% to 95% relative humidity

Emissions and Immunity:

FCC Class A, CE Class (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea)

Safety:

UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU), UL 60950-1 2nd ED (Cellular related), cUL 60950-1 2nd ED, IEC 60950-1 2nd ED (Cellular Related)

EMC/Radio Compliance (Cellular Related):

FCC Part 15 Class B, FCC Part 22, 24, 27

Network (Cellular Related): PTCRB

Cellular Type: 4G/LTE

Cellular Frequency Bands (MHz):

4G: B12/B13(700), B5(850), B4(AWS1700), B2(1900), 3G: B5(850), B2(1900)

Country of Origin: United States
