Vertiv Liebert MicroPOD - (8) NEMA 5-15R| 12A UPS Maintenance Bypass/Switch - (2) NEMA 5-15P| Max Current 12A| AC 120V| for GXT and PSI UPS| 3kVA and below MP2-115A

Vertiv Liebert MicroPOD - (8) NEMA 5-15R| 12A UPS Maintenance Bypass/Switch - (2) NEMA 5-15P| Max Current 12A| AC 120V| for GXT and PSI UPS| 3kVA and below

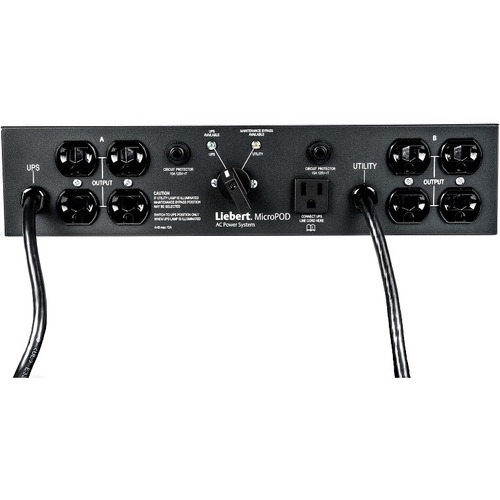

The Vertiv Liebert MicroPod External Maintenance Bypass POD (MP2-115A) is an external power output distribution (POD) unit and maintenance bypass switch for your uninterruptible power supply (UPS) unit. With the MicroPod, you can avoid initiating unnecessary downtimes during UPS maintenance or replacements. It allows the manual transfer of power from the UPS to the utility source without power interruption to the connected load, ensuring continuous uptime for your critical operations. The MicroPod MP2-115A is designed for the Vertiv Liebert GXT and Vertiv Liebert PSI UPS 3kVA models and below, but is compatible with other UPS brands as well. It comes with brackets for easy rack mounting and is equipped with two NEMA 5-15P input connectors. The MicroPOD has eight NEMA 5-15 output connectors and is available at 120V and supports a max current of 12A. More from the Manufacturer

Technical Specifications:
Plug/Connector Type: NEMA 5-15P
Receptacles: 8 x NEMA 5-15R
Protection Type: Surge, Signal
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Current: 12 A
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.5"
Width: 17"
Depth: 3.5"
Weight (Approximate): 9.92 lb
Package Contents:

MicroPOD MP2-115A Bypass Switch, Brackets for Rack Mounting

Compatibility: Liebert Micro-UPS Systems
Certifications & Standards:

UL, cUL
