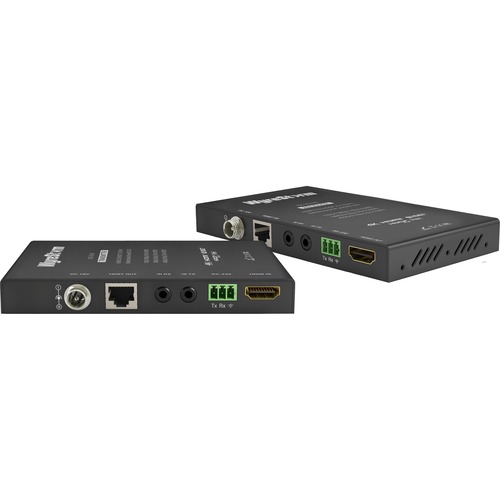

Wyrestorm 18Gbps 4K HDR HDBaseT Extender with HDCP 2.2 and 2-way PoH - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 7 - Rack-mountable EX-70-H2

WyreStorm 18Gbps 4K HDR HDBaseT Extender with HDCP 2.2 and 2-way PoH - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 7 - Rack-mountable

HDMI 2.0 MAXED OUT Knowing the speed at which technology moves, at WyreStorm we''re always looking ahead. That''s why we''ve implemented our VLC chipset (Visualy Lossless Compression) into this model meaning it''s ready for the next shift in content technology: 4K 60Hz 4:4:4 HDR. HDCP 2.2 COMPLIANT The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted. Being part of the H2 product family, the EX-70-H2 supports the multi-point distribution of this content over HDBaseT™. SIGNAL RE-CLOCKING Installers shouldn''t experience problems because of source equipment they have no control over. That''s why all extenders in the WyreStorm H2 family automatically "re-clock" the source signal, overcoming clock-stretching issues found in certain source devices. FLEXIBLE INSTALL OPTIONS WITH 2-WAY POH No 2 installs are the same; that''s why we''ve enabled all of the H2 extender line up to be powered from either the TX or RX, meaning maximum flexibility on-site without hunting for a mains outlet.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 230 ft
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 7
Transmitter Height: 0.60"
Transmitter Width: 5.37"
Transmitter Depth: 2.92"
Receiver Height: 0.60"
Receiver Width: 5.37"
Receiver Depth: 2.92"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 8.47 oz
Receiver Weight (Approximate): 8.47 oz
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
