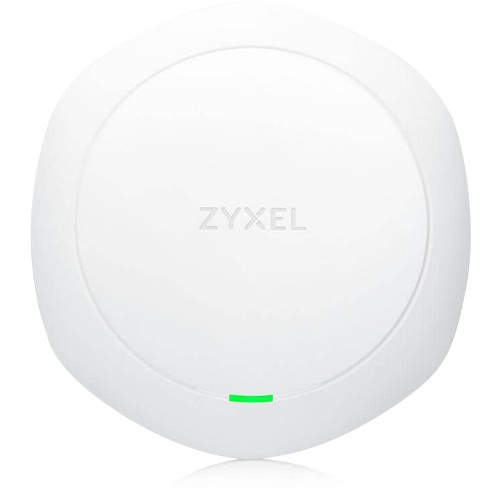

Zyxel NWA1123-AC HD IEEE 802.11ac 1.60 Gbit/s Wireless Access Point - 5 GHz, 2.40 GHz - 4 x Antenna(s) - 4 x Internal Antenna(s) - MIMO Technology - Beamforming Technology - 2 x Network (RJ-45) - Ceiling Mountable, Wall Mountable NWA1123-ACHD

ZyXEL NWA1123-AC HD IEEE 802.11ac 1.60 Gbit/s Wireless Access Point - 5 GHz, 2.40 GHz - 4 x Antenna(s) - 4 x Internal Antenna(s) - MIMO Technology - Beamforming Technology - 2 x Network (RJ-45) - Ceiling Mountable, Wall Mountable

The Zyxel NWA1123-AC HD is a Wave 2 dual-radio 3x3 MU-MIMO standalone Access Point with a combined data rate of up to 1.6Gbps. Thanks to its superior hardware design with next generation beamforming technology and advanced noise suppression, the NWA1123-AC HD delivers increased coverage and improved connection speeds for every client. The high-performance NWA1123-AC HD provides fast, reliable wireless experience that makes itself a favorable, cost-effective solution for high-density Wi-Fi deployments.MU-MIMO, New Definition of Wi-FiStepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.Single-User MIMOMulti-User MIMOGeneration-2 Transmit Beamforming benefits overall networkingTransmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients. Built for Superior performanceThe NWA1123-AC HD is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.Optimized wireless experience with advanced featuresTo provide outstanding performance in crowded environment, NWA1123-AC HD features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.

Technical Specifications:
Wireless LAN Standard: IEEE 802.11ac
Frequency Band: 5 GHz, 2.40 GHz
Total Number of Antennas: 4
Number of Internal Antennas: 4
Wireless Transmission Speed: 1.60 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: Yes
Form Factor: Ceiling Mountable, Wall Mountable
Height: 1.5"
Width: 8.3"
Depth: 8.8"
Weight (Approximate): 1.65 lb
Package Contents:

802.11ac Wave 2 Standalone Access Point, Wall/Ceiling Mount Plate, 12V 2A Adapter, Mounting Screws

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
